use:

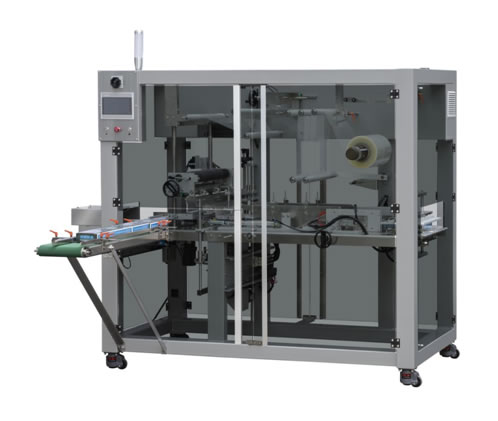

This machine is widely used in the packaging of various single large box items or the collective film packaging of multiple small box items (with gold wires) in industries such as pharmaceuticals, health care products, food, cosmetics, stationery, and audio-visual products.
Performance features:
The work of this machine is completed by a series of servo motors inside the machine driving various connecting rods and components. It adopts multi-functional digital display, variable frequency stepless speed regulation, PLC programming control technology, automatic box feeding, automatic counting, and touch display. Human-machine interface, suction and film falling; and can be used in conjunction with other production lines.
The main technical parameters:
Packaging materials: BOPP smoke film and gold wire
Packaging speed: 30-60 packages/minute
Packing size: (L)80-360×(W)50-250×(H)20-120mm, (length+height (mm)≤450, width+height (mm)≤370)
Power supply and total power: 220V 50Hz 6kw
Machine weight: 500kg
Machine dimensions: (L)2200×(W)950×(H)1700mm
